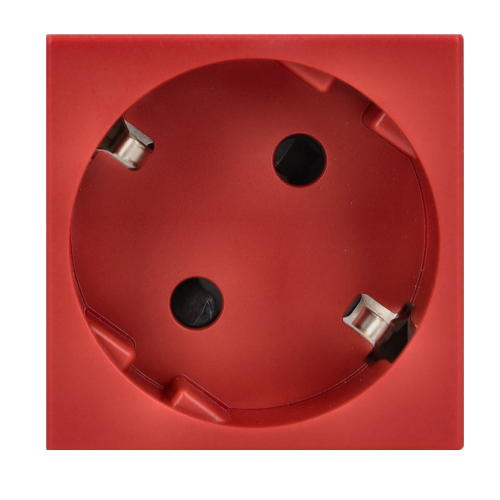

Single socket outlet, K45, SCHUKO, 16A, 250V, Screw, 45×45mm, red

K01/6

Single socket outlet, K45, SCHUKO, 16A, 250V, Screw, 45×45mm, red
Add to the clipboard

Basic data

  1. Series: K45
  2. Product name / Type: Single socket outlet
  3. Color: red
  4. Product type: Complete product
  5. Nominal current: 16 A
  6. Nominal voltage: 250 V
  7. Connection type / Crimp type: Screw
  8. IP degree of protection: IP20
  9. Type: SCHUKO

Detailed data

  1. Type of material: Plastic,
    Halogen free
  2. Surface protection: natural
  3. Type of curface: matt
  4. Mounting method[ETIM]: to be built-in
  5. Height of product: 45 mm
  6. Width of product: 45 mm
  7. Depth of product: 39 mm
  8. Installation depth: 39 mm
  9. ETIM Class: EC000125 Socket outlet
  10. Fixing method: Latch
  11. Mounting Dimentions: 45 × 45 mm
  12. Model: with earthing,
    Schuko,
    Side earthing
  13. Protective flap: Complete housing

Logistics data

  1. Outer carton quantity: 10
  2. Measure unit: Qty.
  3. Individual packaging EAN code: 8426436018969
  4. Indiv. weight: 0.045 kg
  5. Outer EAN13: 8426436018969
  6. Height of outer: 4.9 cm
  7. Outer width: 10.1 cm ?Outer width of the side with label
  8. Outer lenght: 24.5 cm

Files to download

  1. CE Declaration
  2. 2017_UES0052
  3. Download the product datasheet
