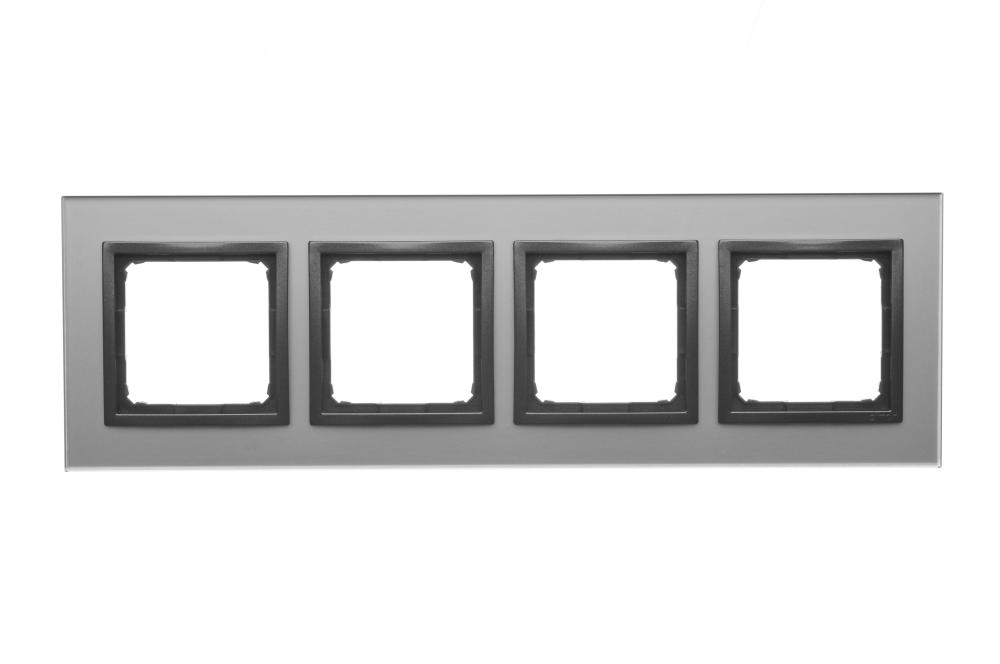

Quadruple frame, glass, Storm cloud

DRN4/72

Quadruple frame, glass, Storm cloud
Add to the clipboard


Click product and and drag to rotate

Basic data

  1. Series: Simon 54 Nature
  2. Product name / Type: Quadruple frame, glass
  3. Color: Storm cloud
  4. IP degree of protection: IP20/IP44
  5. Notes: To obtain IP44 splash-proof class an additional frame seal required,
    Not suitable with hotel room switch
  6. Ring color: anthracite
  7. Numer of modules: 4

Detailed data

  1. ETIM Class: EC000007Cover frame for domestic switching devices
  2. Type of material: Plastic,
    PC,
    Halogen free,
    Glass
  3. Surface protection: varnished,
    natural
  4. Type of curface: gloss
  5. Fixing method: latch
  6. Mounting direction: horizontal and vertical
  7. Height of product: 96 mm
  8. Width of product: 305 mm
  9. Depth of product: 10 mm

Logistics data

  1. Outer carton quantity: 5
  2. Measure unit: Qty.
  3. Individual packaging EAN code: 5902787560010
  4. Pack. type: cardboard box
  5. Ind. pack. height: 4 cm
  6. Ind. pack. width: 12.3 cm ?Horizontal dimentons of product with label or front
  7. Individual packaging lenght: 35 cm
  8. Weight of individual packaging with product: 0.25 kg
  9. Outer EAN13: 5902787560010
  10. Outer type: cardboard box
  11. Height of outer: 13 cm
  12. Outer width: 20 cm ?Outer width of the side with label
  13. Outer lenght: 35.5 cm
