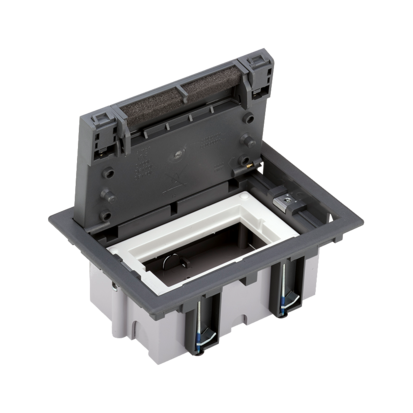

Floor box, SF, Rectangular, 2×K45, 1×CIMA, 70mm÷105mm, IK08, grey

SF170/1

Floor box, SF, Rectangular, 2×K45, 1×CIMA, 70mm÷105mm, IK08, grey
Add to the clipboard

Basic data

  1. Series: SF
  2. Product name / Type: Floor box
  3. Color: grey
  4. IP degree of protection: IP40
  5. Color RAL (akin): RAL 7011
  6. Module type: K45,
    CIMA
  7. Number of K45 modules: 2 × K45
  8. Number of CIMA modules: 1 × CIMA
  9. Heat resistance: + 125 ° C in accordance with IEC 60695-10-2
  10. Material flammability: + 850 ° C / 30 sec. (GWFI in accordance with IEC 60695-2-11
  11. Maximum load of a closed box: 400 kg
  12. Floor finish thickness: 5 mm

Detailed data

  1. Type of material: Plastic,
    Halogen free
  2. ETIM Class: EC000024 Installation box for underfloor-installation
  3. Fixing method: Raised floor,
    Concrete floor
  4. Mounting Dimentions: 170 × 115 mm
  5. Shape: Rectangular
  6. IK mechanical resistance: IK08
  7. Adjustable depth: 70-105 mm

Logistics data

  1. Outer carton quantity: 1
  2. Measure unit: Qty.
  3. Individual packaging EAN code: 8426436052635
  4. Indiv. weight: 0.72 kg
  5. Outer EAN13: 8426436052635
  6. Height of outer: 7.5 cm
  7. Outer width: 15.5 cm ?Outer width of the side with label
  8. Outer lenght: 19.5 cm
