SF series

  1. SM102/9 Frame for S66/.. adapters, CIMA, 1×CIMA, Pure white, Spare piece, for SF series floor boxes
  2. SM102/14 Frame for S66/.. adapters, CIMA, 1×CIMA, Grey graphite, Spare piece, for SF series floor boxes
  3. SM202/9 Frame for S66/.. adapters, CIMA, 2×CIMA, Pure white, Spare piece, for SF series floor boxes
  4. SM202/14 Frame for S66/.. adapters, CIMA, 2×CIMA, Grey graphite, Spare piece, for SF series floor boxes
  5. SM302/9 Frame for S66/.. adapters, CIMA, 3×CIMA, Pure white, Spare piece, for SF series floor boxes
  6. SM302/14 Frame for S66/.. adapters, CIMA, 3×CIMA, Grey graphite, Spare piece, for SF series floor boxes
  7. SM402/9 Frame for S66/.. adapters, CIMA, 4×CIMA, Pure white, Spare piece, for SF series floor boxes
  8. SM402/14 Frame for S66/.. adapters, CIMA, 4×CIMA, Grey graphite, Spare piece, for SF series floor boxes
  9. 52051801-030 Frame, Simon 500, 1×S500, Pure white, Spare piece, for SIMON 500 floor boxes
  10. 52051801-038 Frame, Simon 500, 1×S500, Grey graphite, Spare piece, for SIMON 500 floor boxes
  11. 52051802-030 Frame, Simon 500, 2×S500, Pure white, Spare piece, for SIMON 500 floor boxes
  12. 52051802-038 Frame, Simon 500, 2×S500, Grey graphite, Spare piece, for SIMON 500 floor boxes
  13. 52051803-030 Frame, Simon 500, 3×S500, Pure white, Spare piece, for SIMON 500 floor boxes
  14. 52051803-038 Frame, Simon 500, 3×S500, Grey graphite, Spare piece, for SIMON 500 floor boxes
  15. 52051804-030 Frame, Simon 500, 4×S500, Pure white, Spare piece, for SIMON 500 floor boxes
  16. 52051804-038 Frame, Simon 500, 4×S500, Grey graphite, Spare piece, for SIMON 500 floor boxes

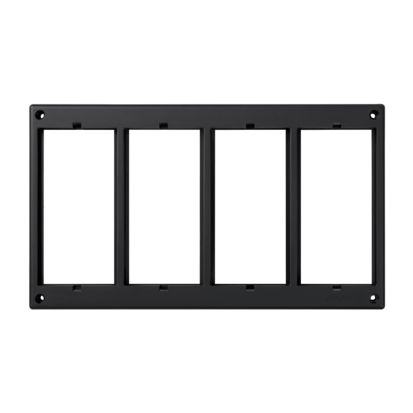

Frame, Simon 500, 4×S500, Grey graphite, Spare piece, for SIMON 500 floor boxes

52051804-038

Frame, Simon 500, 4×S500, Grey graphite, Spare piece, for SIMON 500 floor boxes
Add to the clipboard

Basic data

  1. Series: Simon 500
  2. Product name / Type: frame
  3. Color: Grey graphite
  4. Product type: Spare piece
  5. Color RAL (akin): RAL 7021
  6. Numer of modules: 4
  7. Module type: SIMON 500
  8. Number of modules SIMON 500: 4 × S500

Detailed data

  1. Type of material: Plastic,
    Halogen free
  2. Height of product: 132 mm
  3. Width of product: 228 mm
  4. Depth of product: 16 mm
  5. ETIM Class: EC002250 Transition adapter for domestic switching devices
  6. Fixing method: Screws
  7. Use: for SIMON 500 floor boxes

Logistics data

  1. Outer carton quantity: 5
  2. Measure unit: Qty.
  3. Individual packaging EAN code: 8421053254868
  4. Indiv. weight: 0.089 kg
  5. Outer EAN13: 8421053254868
  6. Height of outer: 9.5 cm
  7. Outer width: 13.5 cm ?Outer width of the side with label
  8. Outer lenght: 23 cm

Files to download

  1. CE Declaration
  2. 2017_UES0050
  3. Download the product datasheet
  4. 52051804-038
